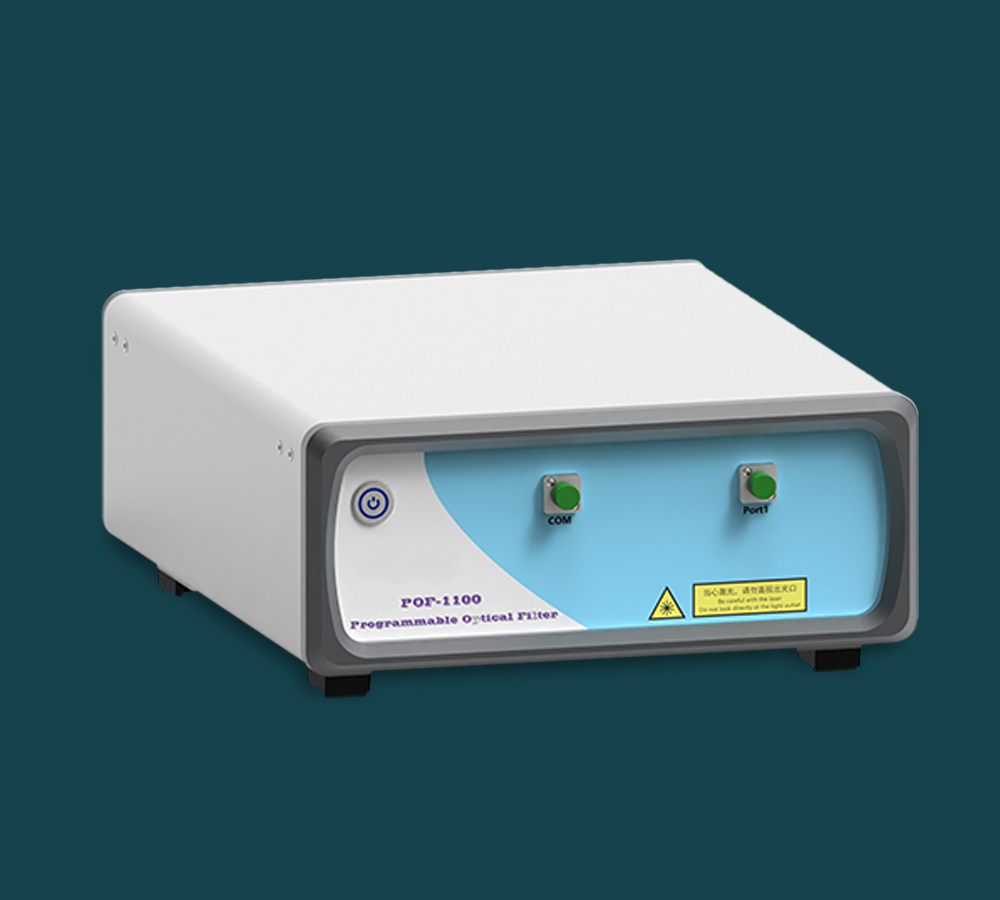

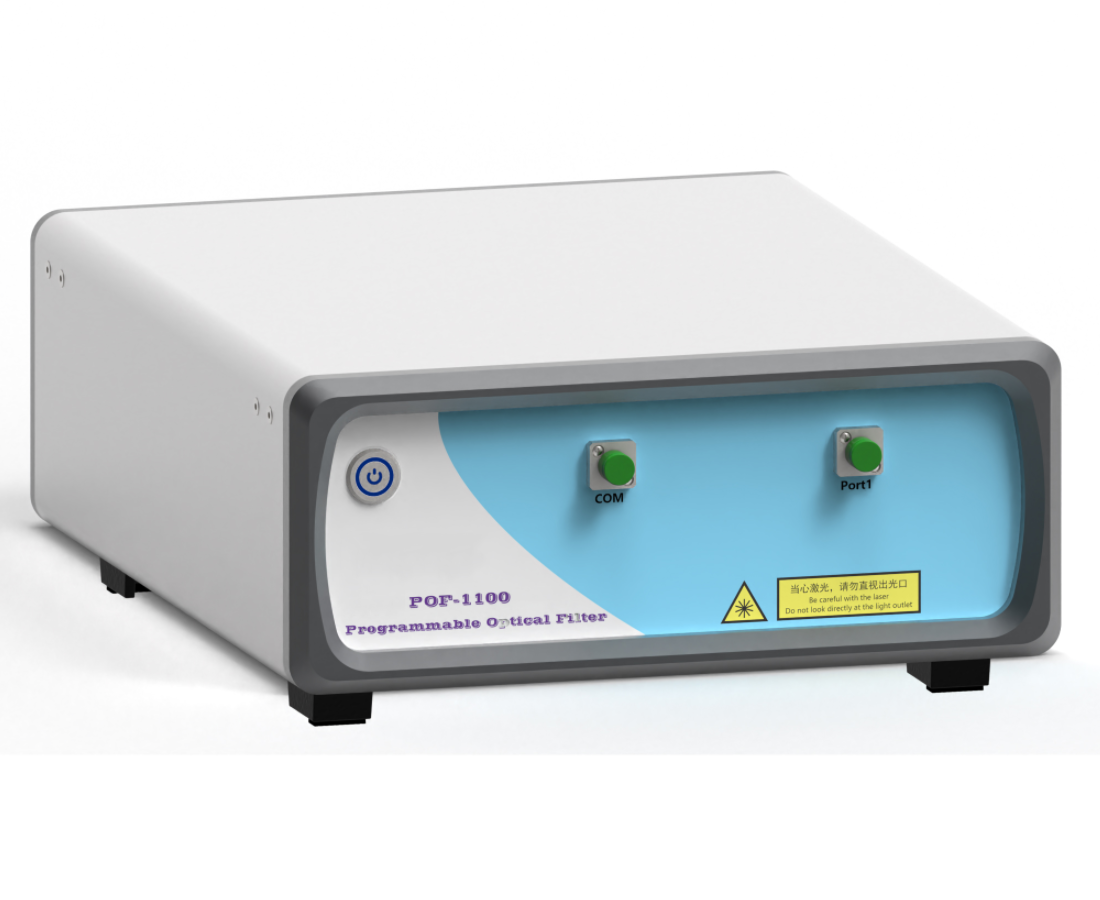

Programmable Optical Filter POF-1100L

Programmable optical filter is an instrument designed for wavelength selection. It can select the desired wavelength from numerous options, while others will be rejected.

Based on liquid crystals on silicon technology, our high-resolution programmable optical filters enable extremely fine modulations of light beams, covering C band and L band. The products can switch optical wavelength channels dynamically from any input to any output. The filters can be easilly programmed and are friendly to use.

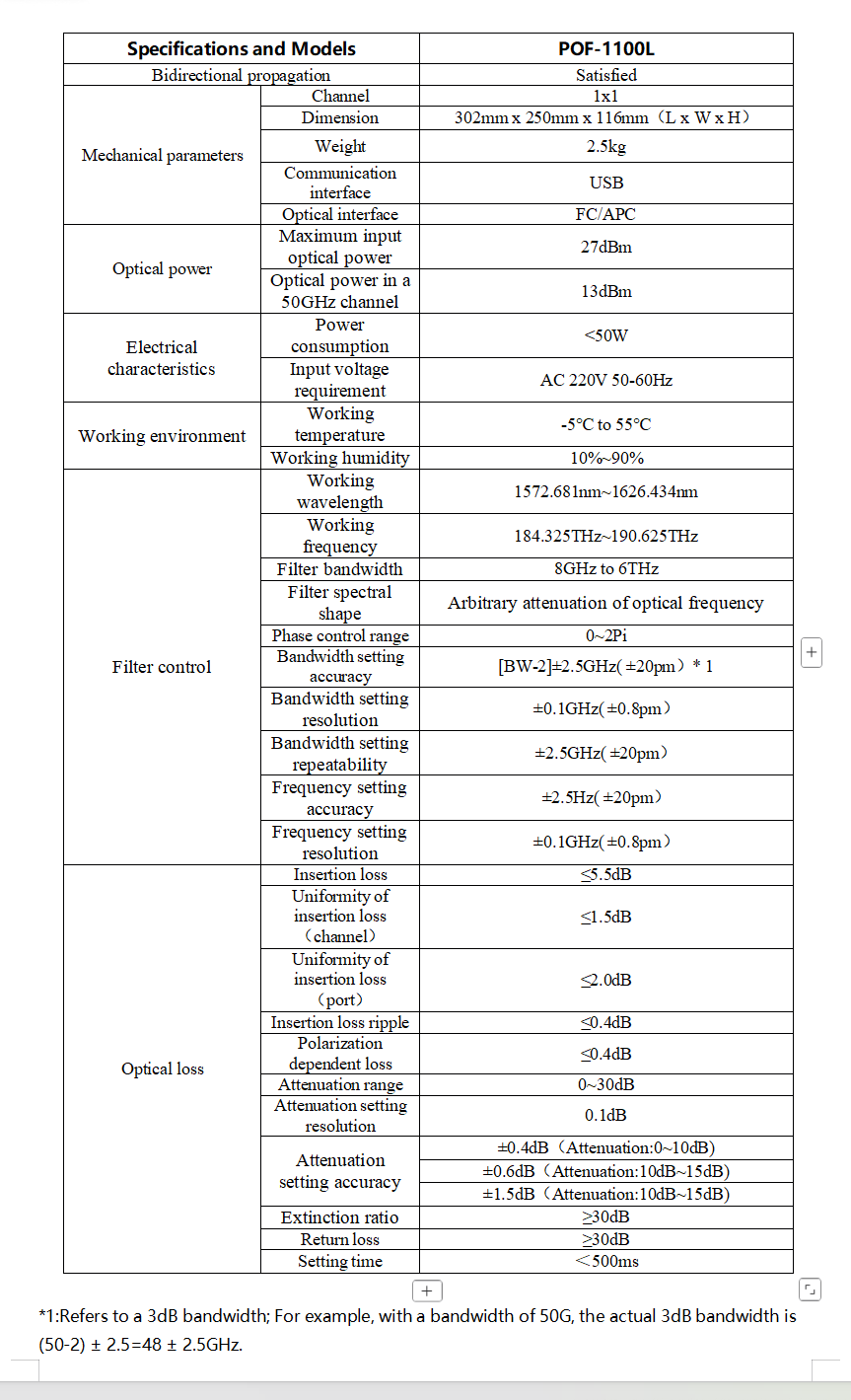

Product parameters

Product Description

Advanced Filtering Solution for Optical Communications

The Programmable Optical Filter POF-1100L is engineered for researchers, developers, and test engineers requiring high-precision wavelength selection and dynamic channel routing capabilities. As a product from a leading programmable optical filter manufacturer, it offers precise control over spectral parameters within the C-band and L-band regions. This solution supports experimental setups and prototype development where rapid reconfiguration and fine spectral shaping are essential. Its user-oriented design is tailored for laboratory and bench environments where versatile wavelength control is pivotal for validating new optical components and systems.

Precision and Technical Capabilities

Featuring LCOS technology, the POF-1100L provides high-resolution modulation with a working wavelength range from 1572.681 nm to 1626.434 nm, encompassing both C-band and L-band programmable optical filter applications. Key specifications include an 8 GHz to 6 THz filter bandwidth, ±0.1 GHz bandwidth resolution, and a programmable attenuation range from 0 to 30 dB with fine setting accuracy. The compact device incorporates a USB interface for programming and control, achieving sub-500 ms setting times. High extinction ratio and return loss values, each ≥30 dB, ensure minimal signal degradation, making it suitable for precise wavelength-selective filtering tasks.

Integration and Industry Relevance

This programmable optical filter supports diverse sectors such as optical communications, laser processing, and photonics research. Its capability for dynamic wavelength channel switching enables system-level validation and spectral calibration vital in telecom testbeds and prototype systems. By integrating the POF-1100L, engineers achieve enhanced experimental flexibility and reduced reliance on fixed wavelength filters, optimizing workflows in R&D labs and manufacturing environments. As a product offering from an established optical filter manufacturer, it streamlines wavelength management in complex optical networks and measurement systems.

Robust Design and System Integration Benefits

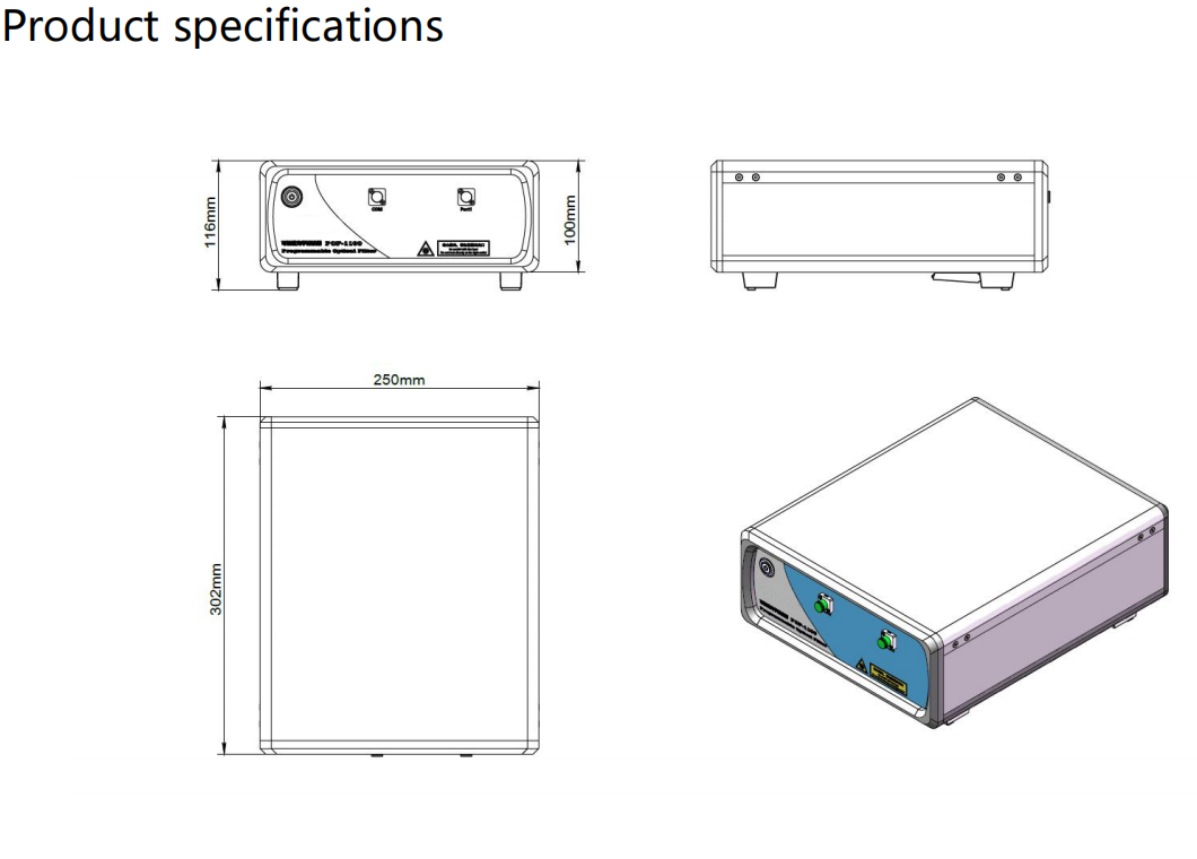

The POF-1100L is designed with a compact enclosure measuring 302 mm x 250 mm x 116 mm and weighing only 2.5 kg, facilitating easy integration into optical test setups. Utilizing LCOS technology, it offers precise phase control and bandwidth customization. The device supports a standard FC/APC optical interface and USB communication for streamlined system compatibility. As a solution provided by a programmable optical filter manufacturer, it emphasizes modularity and adaptability, addressing diverse experimental configurations while maintaining robust performance across both C-band and L-band programmable optical filter applications.

High Performance with User-Focused Control

Performance-wise, this programmable optical filter achieves rapid configuration with setting times under 500 milliseconds and high extinction ratios to ensure signal fidelity. Its user-friendly software interface enables intuitive attenuation and spectral shape adjustments, increasing operational efficiency. With stable power consumption below 50 W, the device suits continuous lab operation without excessive heat or noise concerns. Overall, the POF-1100L elevates measurement accuracy and repeatability, offering reliable wavelength control critical for users demanding precise optical filtering from a reputable programmable optical filter manufacturer.

Wavelength Selection and Channel Routing in Optical Research

In advanced optical communication laboratories, researchers require flexible wavelength-selective devices for design validation and experimental prototyping. The POF-1100L serves as an essential instrument for dynamic wavelength channel switching and spectral shaping in this environment. Its broad operating wavelength range covering both C-band programmable optical filter and L-band programmable optical filter requirements ensures compatibility with diverse test setups. By integrating the filter into optical benches, engineers can simulate and measure channel routing scenarios with high resolution and rapid configuration, enhancing the fidelity and accuracy of wavelength management in next-generation network designs.

Calibration and Spectral Filtering in Telecommunication Testbeds

Telecommunication service providers and equipment manufacturers utilize the POF-1100L in testbed applications requiring precise attenuation calibration and spectral filtering. The device’s ability to finely adjust attenuation levels combined with programmable bandwidth settings allows for comprehensive performance benchmarking and system-level validation of multiplexed optical networks. As a component from a trusted optical filter manufacturer, this programmable optical filter accommodates rigorous compliance and testing standards while supporting real-time wavelength tuning and signal conditioning—integral for maintaining network integrity and optimizing optical transmission systems.

FAQ

What wavelength ranges does the Programmable Optical Filter POF-1100L cover?

Our programmable optical filter supports a working wavelength range from 1572.681 nm to 1626.434 nm, covering the entire C-band and L-band. This broad range allows precise, high-resolution filtering suitable for optical communication and research applications.

Can the POF-1100L be customized for specific spectral shaping or attenuation needs?

Yes, the POF-1100L offers programmable attenuation from 0 to 30 dB and fine spectral shaping through an LCOS-based system. We provide a user-friendly USB interface enabling precise control, making it an ideal programmable optical filter for varied experimental setups and industrial uses.

What installation and control options are available for this optical filter?

The POF-1100L is compact and robust, designed for lab environments, with simple USB connectivity for programming and control. We ensure easy integration into your testbench without special installation requirements, making it a reliable choice among optical filter manufacturers.

How does your company support long-term use and maintenance of the POF-1100L?

We provide comprehensive technical support for the POF-1100L, including programming guidance and operational troubleshooting. Our experience as a leading programmable optical filter manufacturer ensures you have continual assistance to optimize device performance in your optical communication systems.
